ADSL Communication line lightning arrester HD-XT-ADSL

Online Inquiry
Click Refresh Verification Code

Details

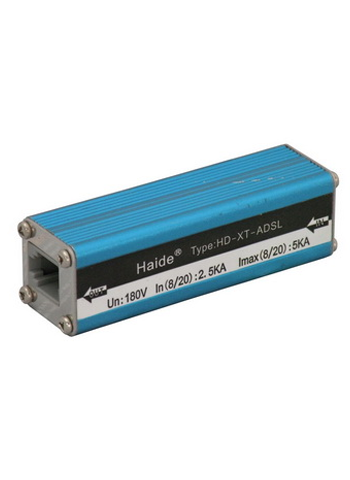

ADSL Communication line lightning arrester

This product has very low output residual voltage and it can ensure the quick response time.The interface mode has the choices of RJ11,RJ45 and connection terminal,and so on.

It is typically applied to telephone,ADSL,DDN,ISDN,fax machine,modem and SPC exchange.




MODEL

HD-XT-ADSL

Nominal working voltage Un

180V

Maximum continuous working voltage Uc

200V

Nominal discharge current In（8/20μs）

2.5KA

Maximum discharging current Imax（8/20μs）

5KA

Voltage protection level Up

（X-X）

400V

（X-G）

400V

Response time Ta

≤1ns

Insertion loss

≤0.2dB

Series impedance R

4Ω

Data transmission rate

20M

Protection grade

IP20

Sheathing material

Shielding metallic aluminum

Operating temperature range Tup

-40℃至+70℃

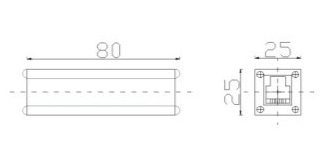

External dimension

80×25×25mm
